Fig. 3


Download original image

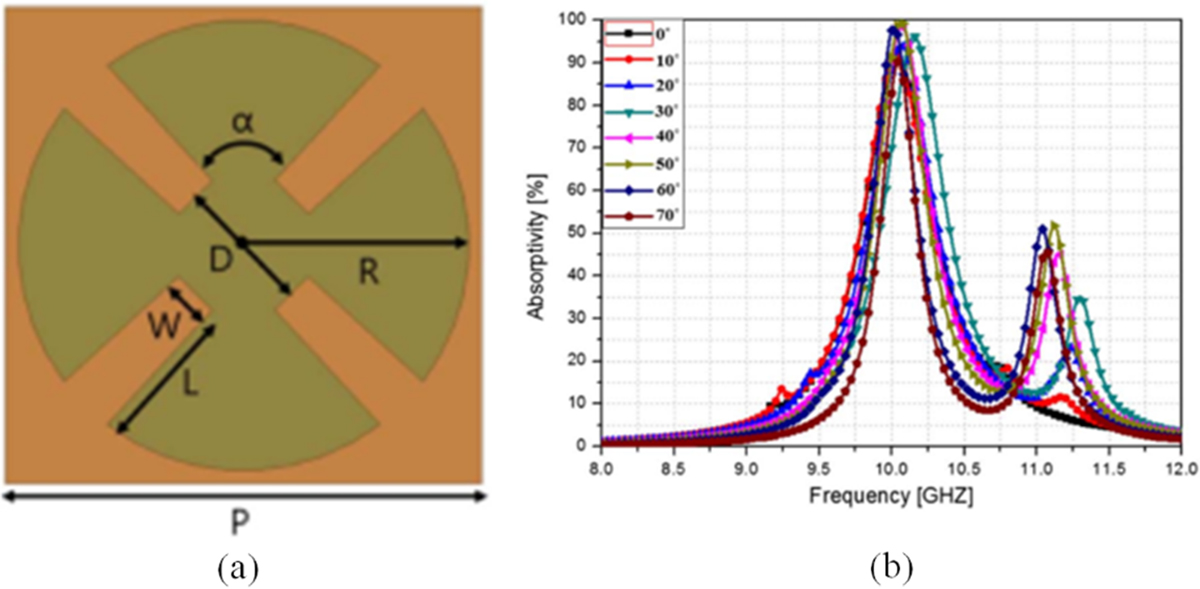

(a) Proposed unit cell geometry along with its physical dimensions: P = 9.1 mm, R = 4.3 mm, W = 0.9 mm, D = 2.6 mm, L = 2.96 mm, thickness = 0.8 mm, and α = 85°. (b) Simulated absorptivity of the proposed structure for different incident angles under TE mode [35].
