Figure 3.


Download original image

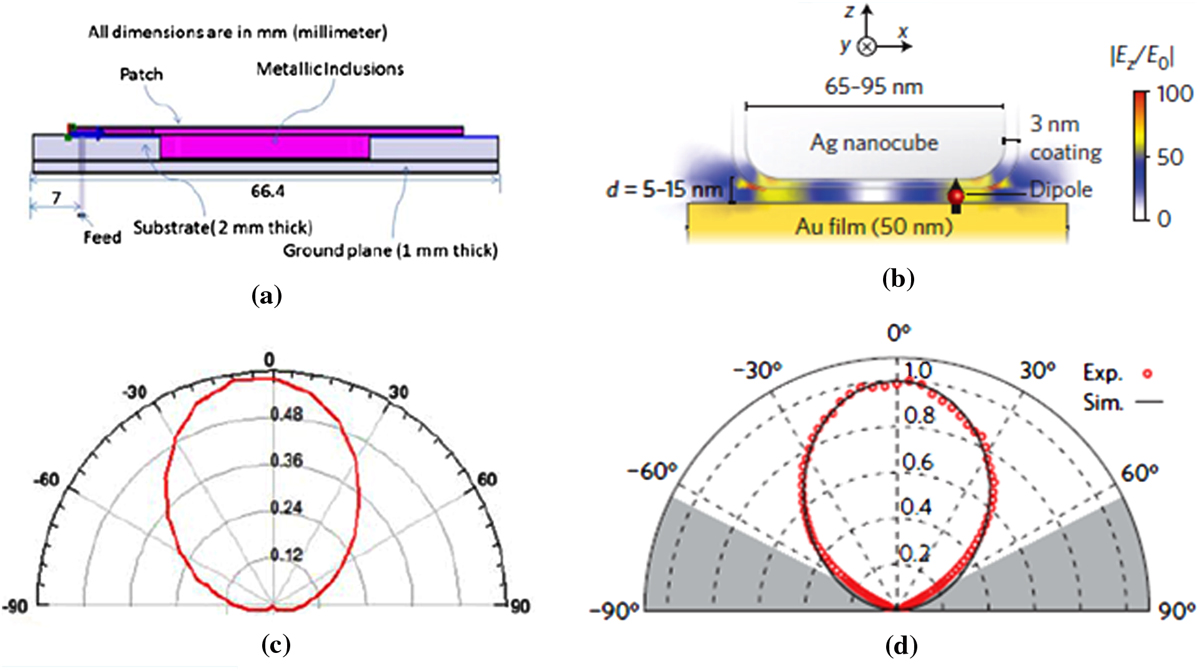

(a) RF microstrip patch antenna [7], (b) nanopatch antenna built by a gold film coupled to a silver nanocube. The maximum field enhancement is confined at the nanogap of this configuration [28], (c) radiation pattern of the RF microstrip patch antenna shown in (a) [7], (d) simulated (black) and measured (red) radiation patterns of the optical nanopatch antenna shown in (b) [28].
