Design and optimisation of a turbofan blade filled with Multi-Poisson’s Ratio Soft–Hard integrated structures

Open Access

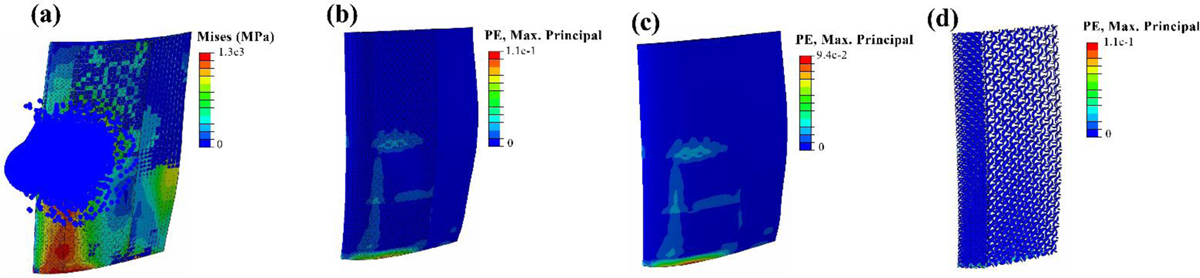

Fig. 13

The big-birds impact results for the improved MPRSHF Blade. (a) von Mises stress of the whole blade. (b) Plastic strain of the whole blade. (c) Plastic strain of the outer shell. (d) Plastic strain of the lattice.
