Fig. 1


Download original image

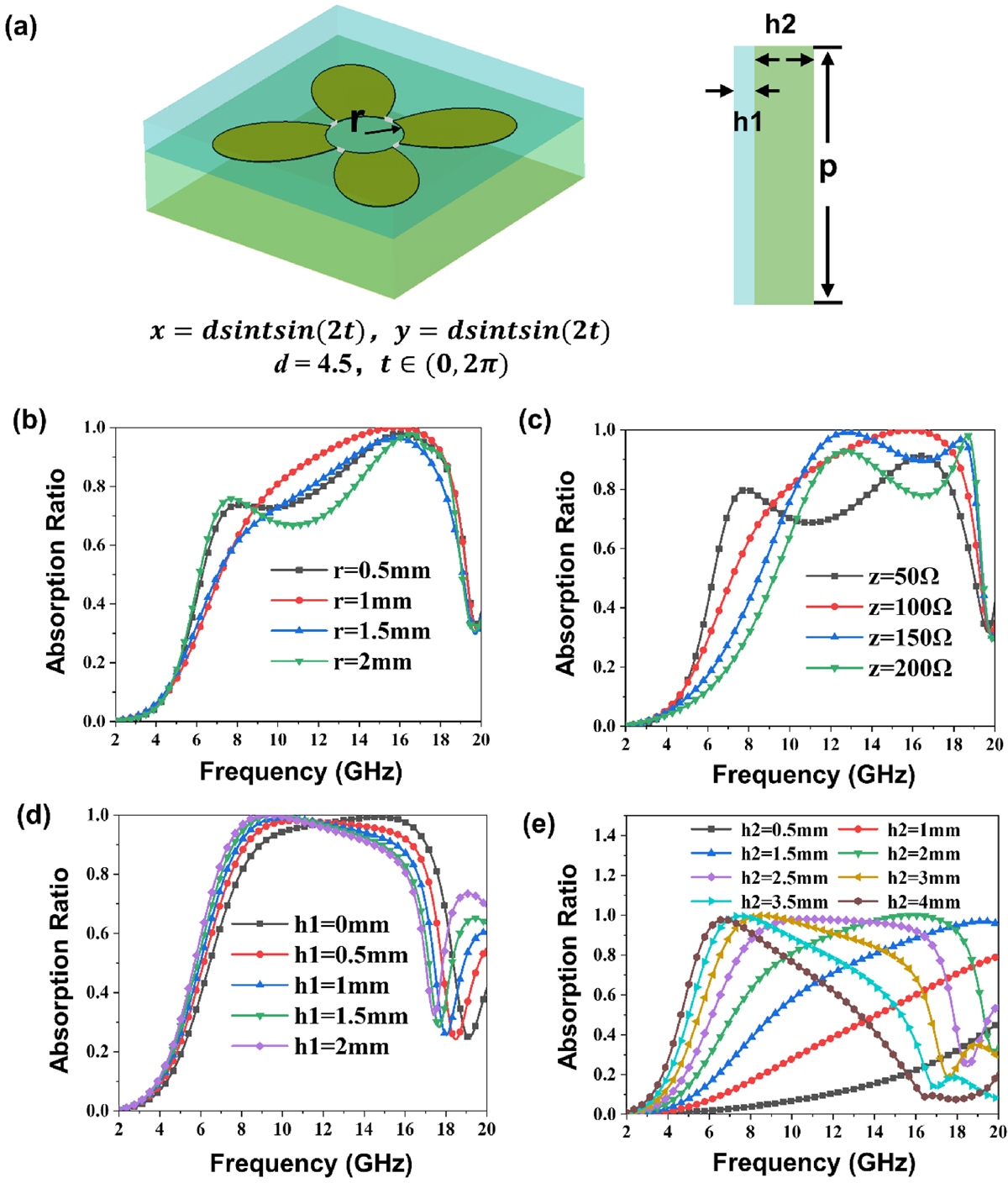

(a) Schematic diagram of the metamaterial absorber's unit and the effect of parameter change on absorption ratio: (b) inner circle radius r, (c) lumped resistance z, (d) Arlon AD 250C layer thickness h1, (e) FR-4 dielectric layer thickness h2.
