Fig. 9


Download original image

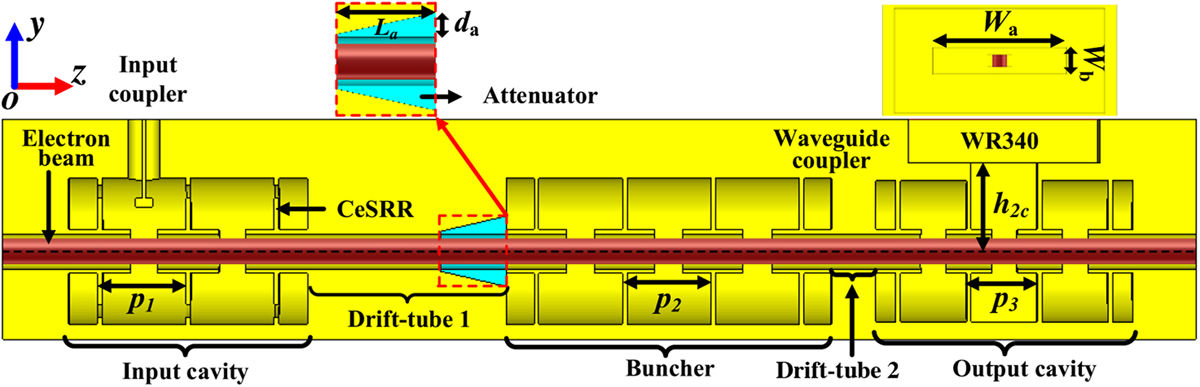

Schematic of the 3-cavity MEIK in the yoz plane. The periods of the input cavity, mid-cavity (buncher), and output cavity are p 1 = 20 mm, p 2 = 20 mm, and p 3 = 16 mm, respectively, and the parameters of the waveguide coupler are W a = 50.5 mm, W b = 16 mm, and h 2c = 19 mm. The length of drift-tube 1 and drift-tube 2 are 55 and 20 mm, respectively, and the entire interaction length is ∼210 mm (∼1.72λ) [48].
