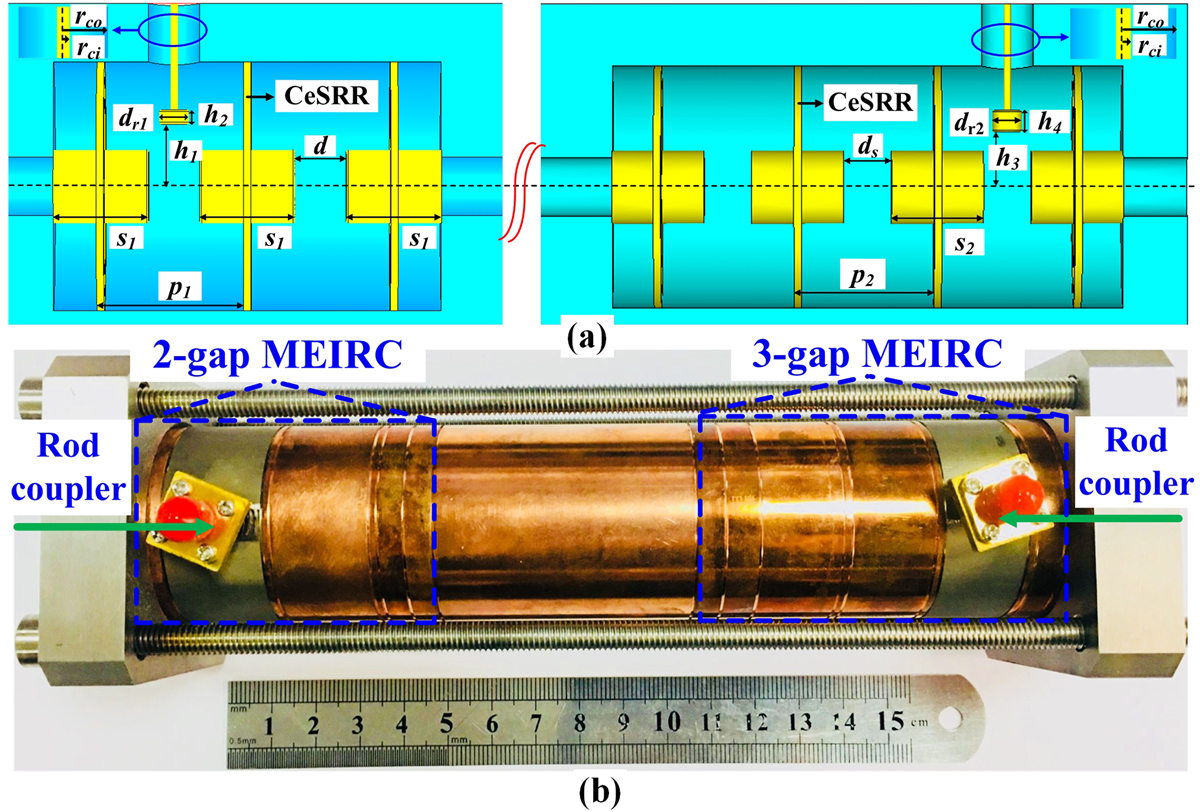

Simulation model and sample of the MTM EIRCs. (a) 2-gap MTM EIRC (left) and 3-gap MTM EIRC (right) with rod couplers and (b) photo of the assembled MTM EIRCs. The parameters are set as p 1 = 20 mm, s 1 = 13 mm, d = 7 mm, h 1 = 11.5 mm, h 2 = 2 mm, d r1 = 4 mm, r co = 2.7 mm, r ci = 0.65 mm, p 2 = 19 mm, s 2 = 12.5 mm, d s = 6.5 mm, h 3 = 11 mm, h 4 = 3 mm, and d r2 = 4 mm .
