Fig. 7


Download original image

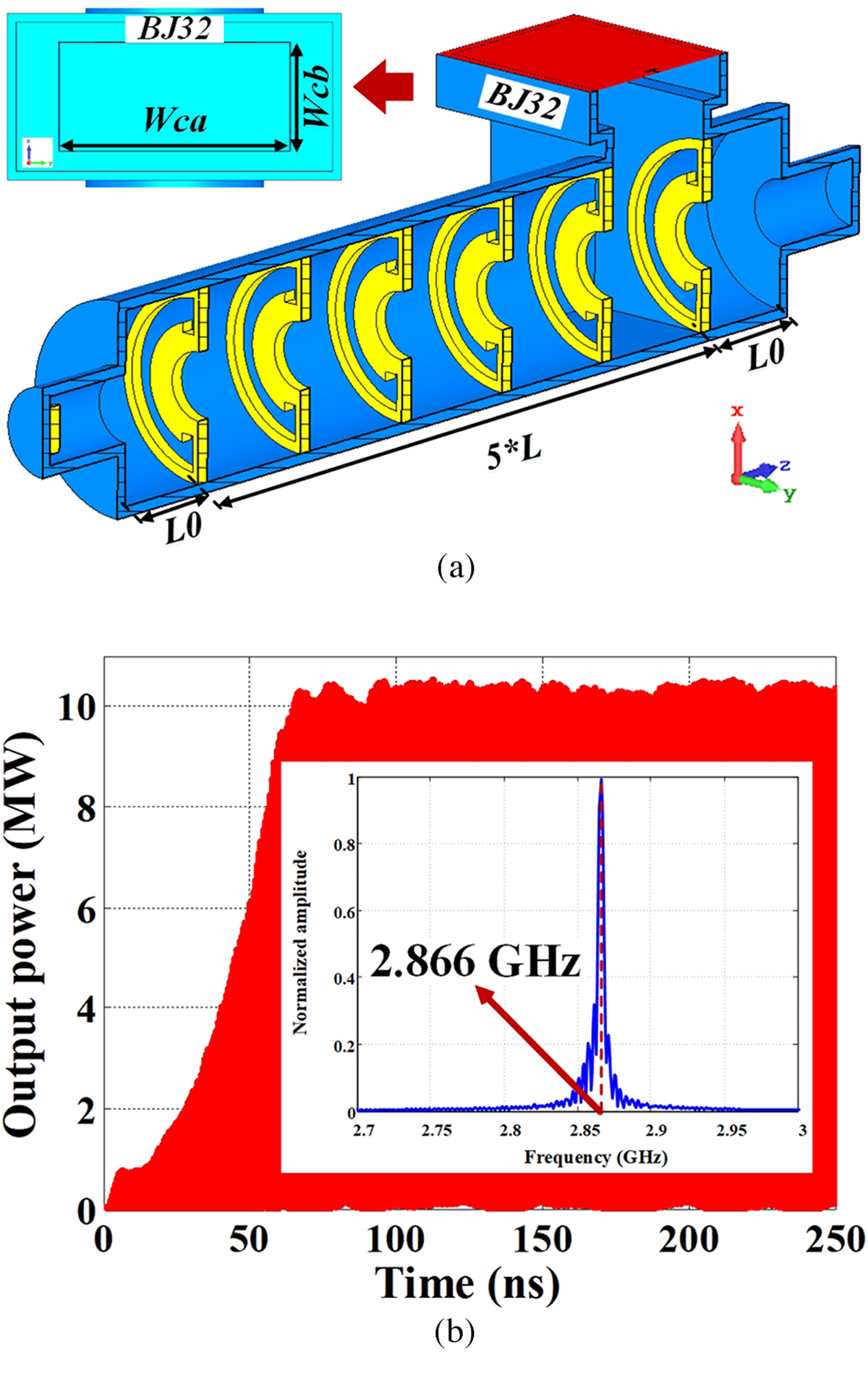

Simulation model and the PIC beam-wave interaction results in CST. (a) Schematic of the 5-gap MEIO, where the inner diameter is 37 mm (∼λ/2.83) and the longitudinal interaction length is about 180 mm (∼1.2λ), (b) peak output power, and spectrum (inset) of the output signal [64].
