Figure 5.


Download original image

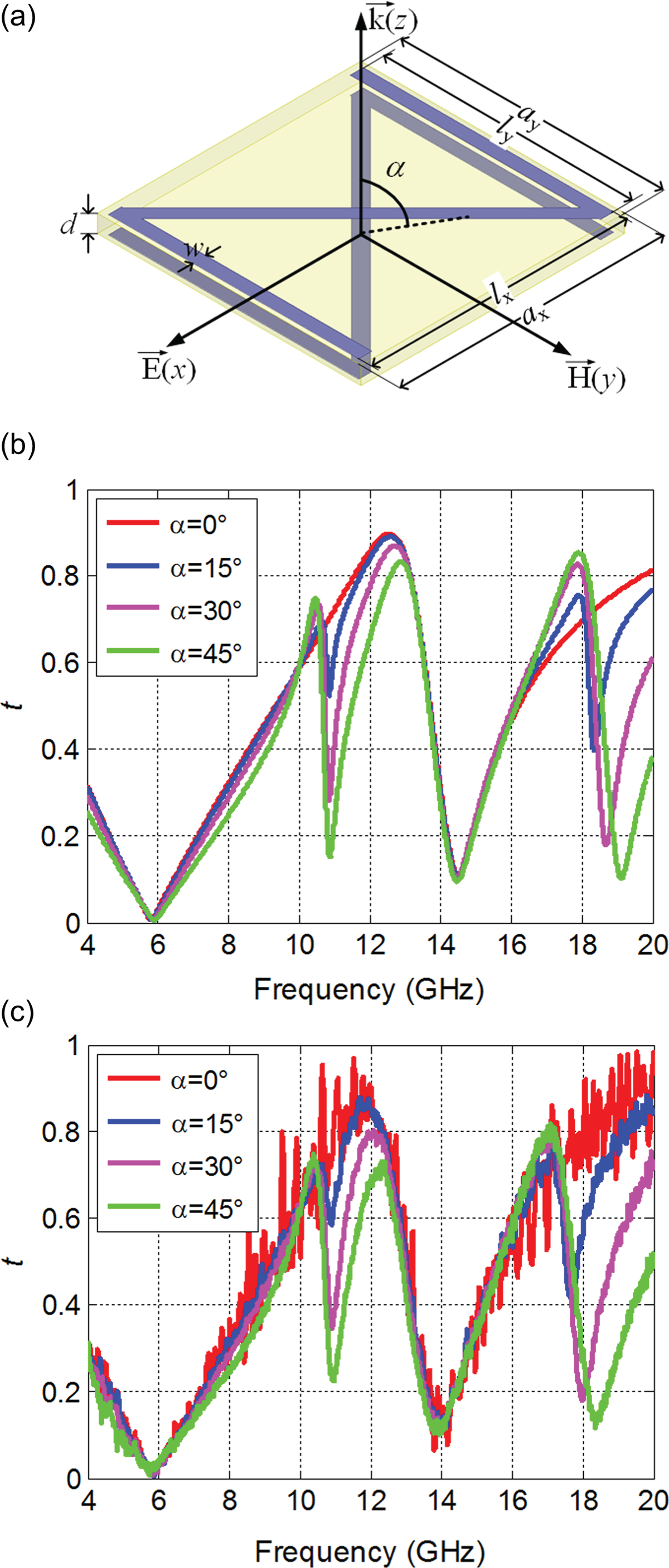

(a) Unit cell and photography of the bi-layered enantiomeric Z metasurface. The geometrical dimensions are the same as for the single-layered Z structure, (b) simulated transmission responses under normal and oblique incidence in H-plane, (c) measured transmission responses.
