Figure 7.


Download original image

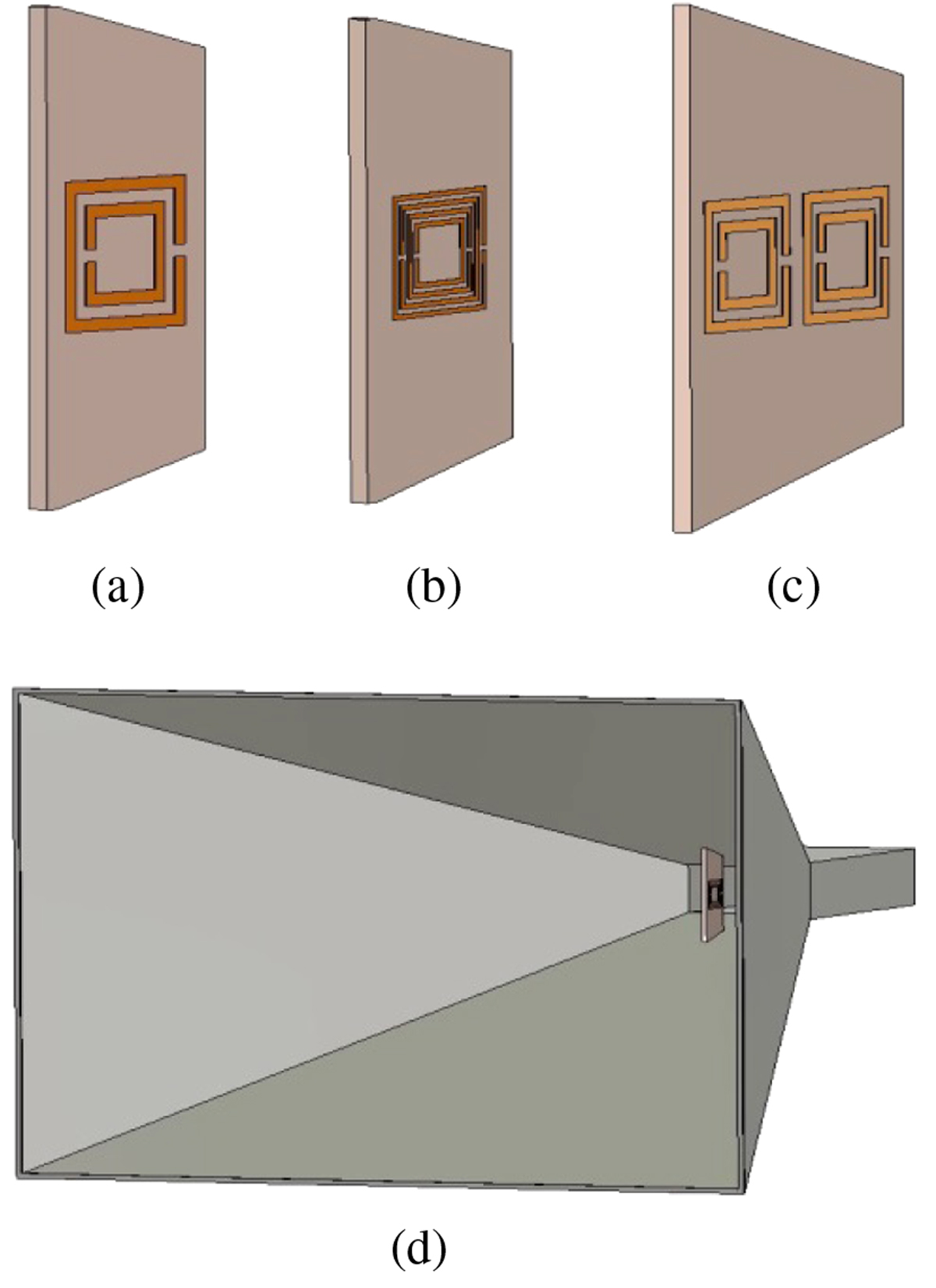

Geometrical sketch of the band-stop filtering modules consisting of a single SRR (a), a single MSRR (b), two coupled-SRRs (c) and of the overall structure consisting of the filtering module inserted between a WR-90 waveguide connected to a pyramidal horn antenna (d).
