Fig. 4
Download original image

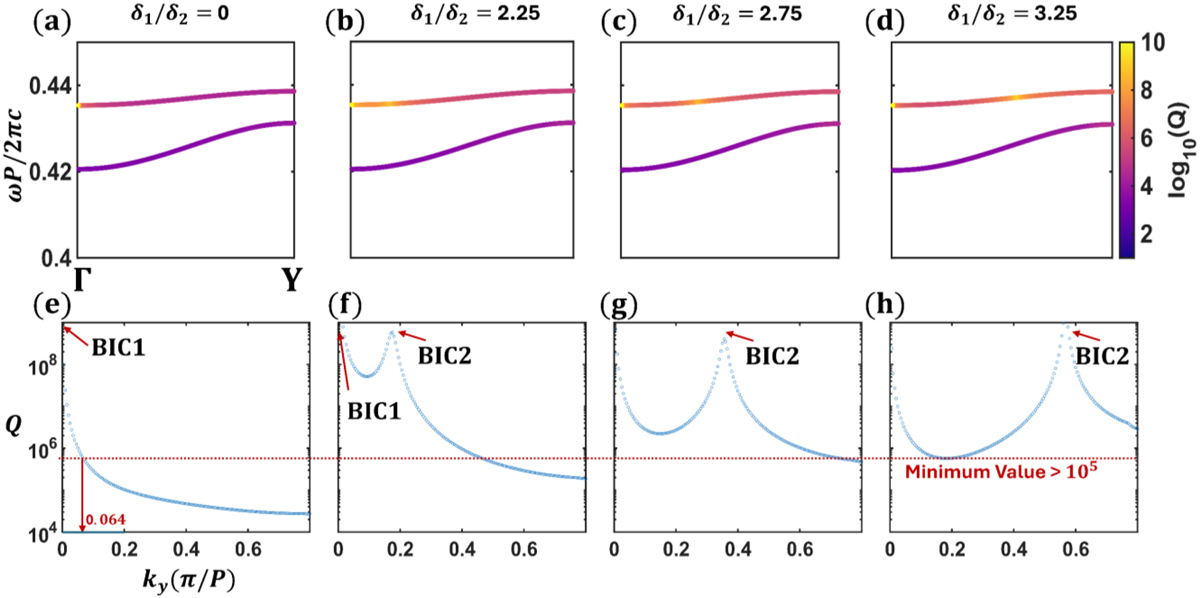

Q factor engineering. (a-d) Band structure of the proposed metasurface with different PDP ratio δ1/δ2. Each mode is coloured based on the Q factor. (e-h) Q factor value in log scale versus ky corresponding to (a-d) respectively.
