Fig. 3


Download original image

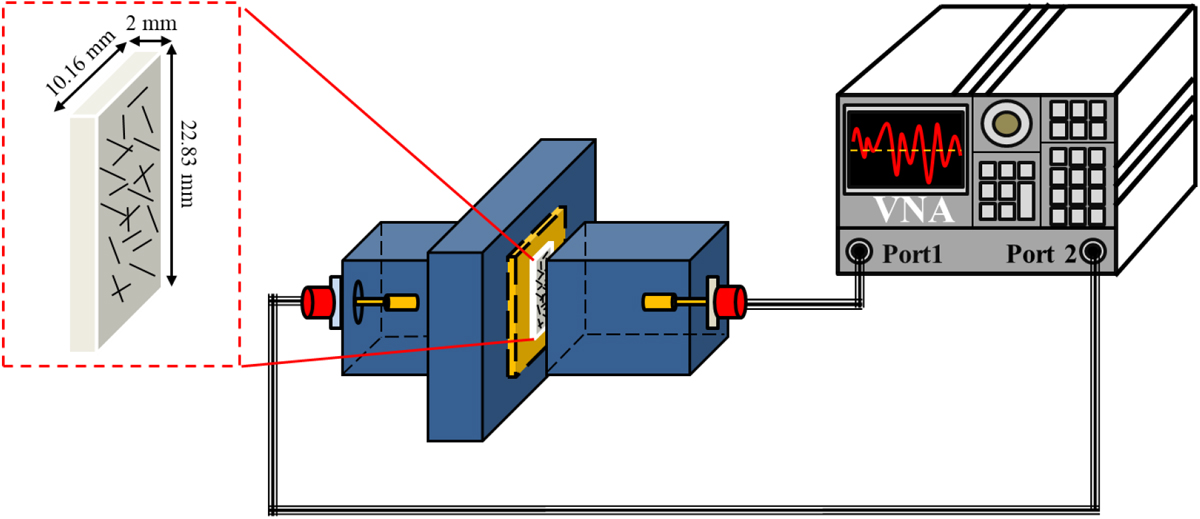

Measurement setup for obtaining the scattering parameters of the microwire composite sample. The waveguide system includes two coaxial adapters (Port 1 and 2) connected to a vector network analyzer (frequency range: 8.2–12.4 GHz). The size of the sample measured in the waveguide was 22.86 × 10.16 × 2 mm3.
