Fig. 13


Download original image

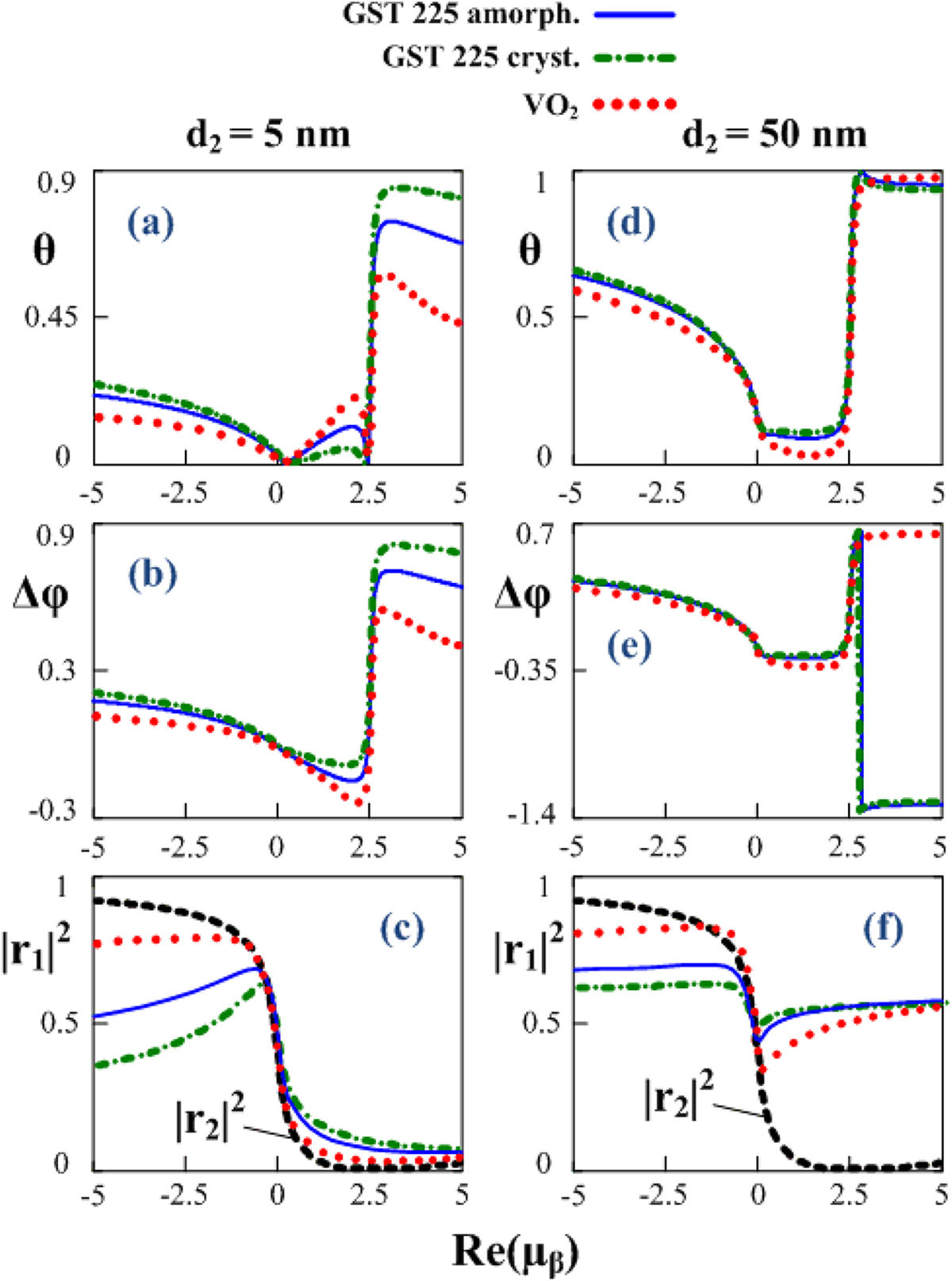

Dependences of angle θ (a, d), PSD of reflected waves (b, e) and corresponding energy reflection coefficients (c, f) on parameter for the choice of various PCMs as the main layer material and TE polarization of the incident wave. The values of parameters are: d2 = 5 nm (a–c), 50 nm (d–f), for all the graphs ψ = π/6, d1,3,4 = 0, , ϵβ = 2 +0.1i. Parameter is used as the abscissa axis for all the graphs.
