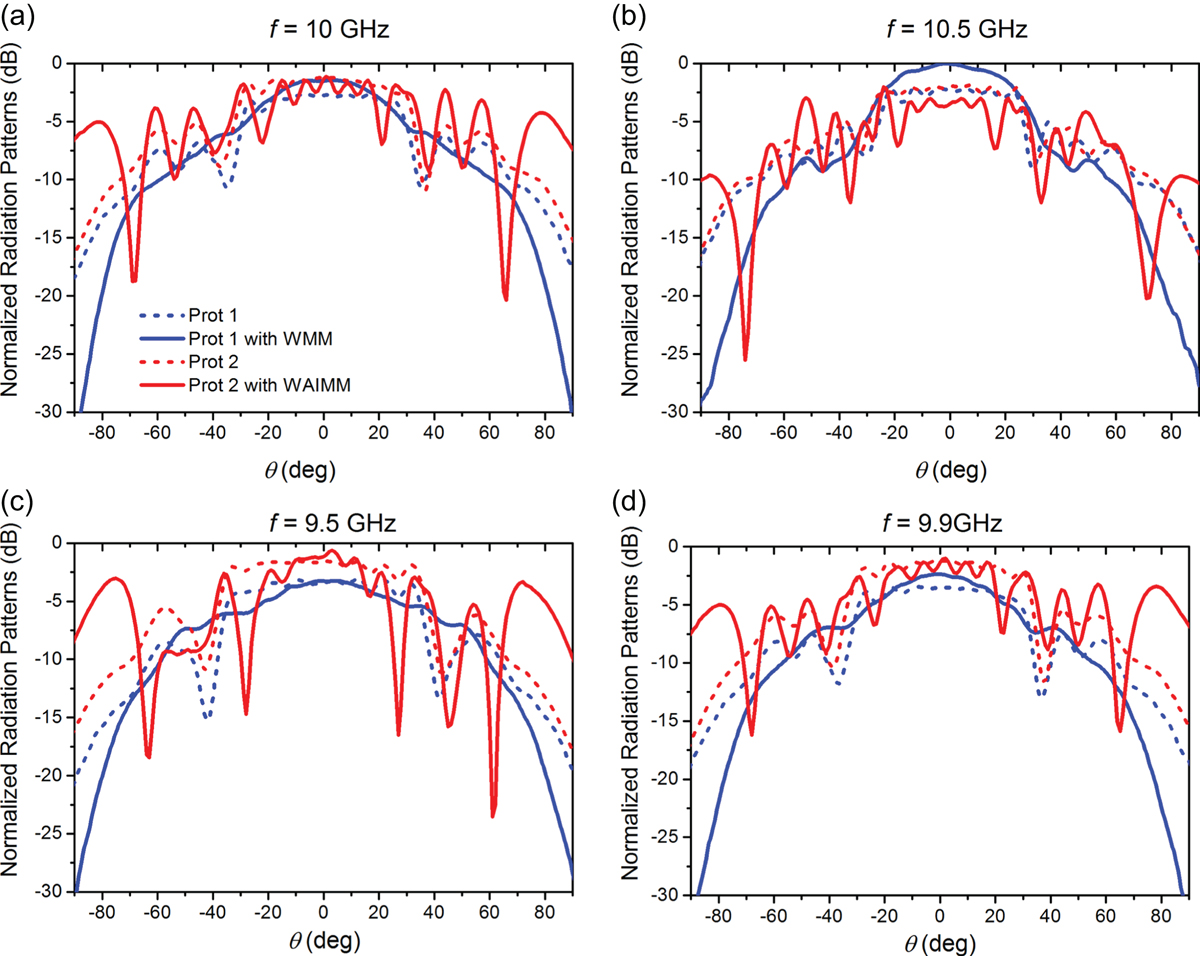

Experimental E-plane central element radiation pattern at different frequencies. Blue color line corresponds to the first prototype (wire medium solution) with (solid) and without (dashed) metaradome. Red color line corresponds to the first prototype (Jerusalem cross based solution) with (solid) and without (dashed) metaradome.
