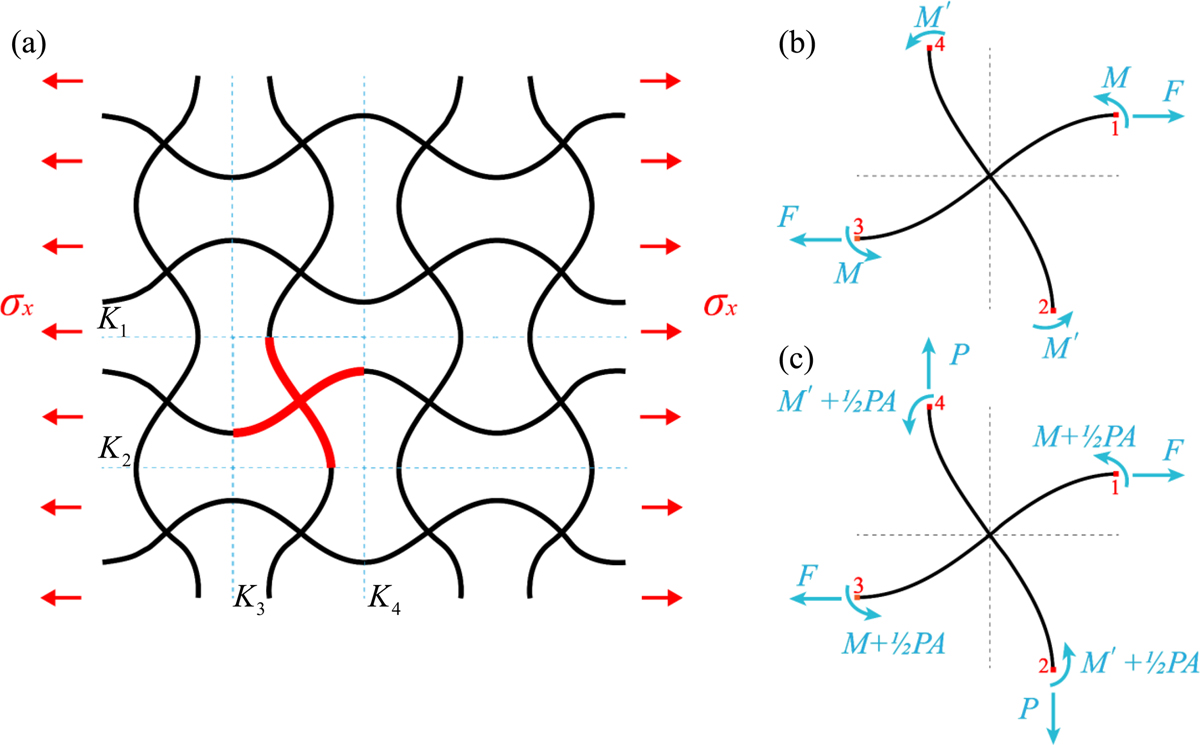

(a). Schematic diagram of the SATMRH under uniaxial load; (b) free-body diagram of a smallest repeated unit (SRU), defined by symmetric cut-lines through the sinusoidal ligaments to ensure identical boundary forces and moments at corresponding cut points; (c) free-body diagram of a SRU incorporating the virtual force.
